ergoPAK™ ergoGLOVE Measures Localized Force Between The Body, Fingers/Hand And External Surfaces And Tools, Or Between Two Surfaces - ergoPAK™ ergoGLOVE 測量身體、手指/手與外部表面及工具之間的局部力量，或兩個表面之間的力量

ergoGLOVE ergonomic FSR Sensor System

• With updated ergoGLOVE wireless hub you can connect 1-8 FSR sensors to measure force.
• Force Sensing Resistors are not a load cell or strain gauge, though they may have similar properties, and can provide a cost effective alternative.
• FSR Sensors can be used with gloves provided in the kit or latex finger cots. The FSR sensors can also be used by themselves, with other gloves, or adhere directly to skin or other external surfaces.
• FSR sensors are thin, flexible and non-obtrusive and have minimal interference with performance or action.
• ergoGLOVE wireless hub allows for free motion and data capturer within 25 feet of computer.
• FDC FET Data Collection Software captures data in real time, and data can be saved in a .csv file format.

Measure Force Under Restrictive Conditions – GO for the GLOVE

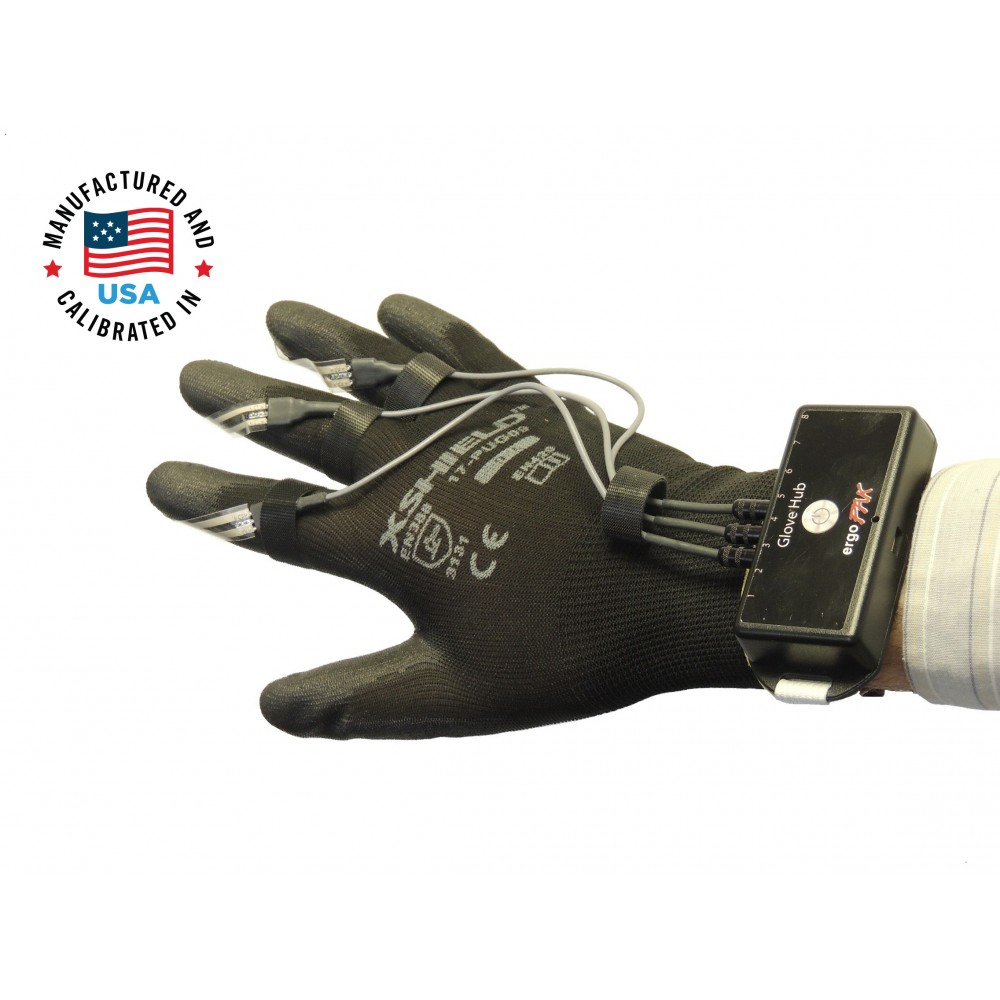

The ergoGLOVE with Force Sensing Resistors is an ergonomic FSR sensor system and can be used to measure localized force between the body, fingers/hand and external surfaces and tools, or between two surfaces. The FSR Sensors are Thin, Flexible, Unobtrusive, and have minimal interference with action or performance. ergoGLOVE is well suited for various tasks, tool analysis, product testing, and where the capabilities of the worker need to be compared to the actual job requirements.

Force Sensing Resistors are not a load cell or strain gauge device, though they have similar properties, and can provide a cost-effective alternative. The wireless capability of the ergoGLOVE allows free motion and data capture within 25 feet. With the ergoGLOVE you can use 1 to 8 Force Sensing Resistors with wireless hub. It can be used as a standalone testing system or simultaneously with other ergoPAK™ sensors. The FDC FET data collection software included with ergoGLOVE captures raw data from the sensor(s), while displaying a real-time graph of the data. Test data is saved in a .csv file format that can be opened and reviewed for further analysis. Software is compatible with Windows Operating Systems XP and newer.

ergoGLOVE Specifications

Force Sensing Resister (FSR) Sensors:

• Sensor Active Area: 0.375 inch diameter / 9.53 mm diameter
• Sensor Length: 2 inches including tail
• Sensor Width: 0.55 inch / 14 mm
• Sensor Thickness: 0.008 inch / 0.203 mm
• Force Range: Maximum Force Limit 100 lbs.

Note: If ergoGLOVE FSR System is purchased together with ergoPAK Portable Analysis Kit, the FDC FET Data Collection software disk is not included, where already part of the ergoPAK system.

FSR Wrist Hub:

• NEW!  Wireless hub with 8 connector ports
• Powered by rechargeable coin cell lithium ion battery
• Wireless range data capture FSR wrist hub from computer: 25 feet

The ergoGLOVE Includes

Wireless Connector Hub w/strap, USB Dongle, (8) Connection Cables, (16) Disposable FSR Sensors, (2) Gloves – (1) RH / (1) LH(Select Size – S, M, L, XL), (9) velcro strips for wire management, double stick adhesive tape, (32) plastic pucks, assorted latex finger cots, FDC FET Data Collection Software, Wall Pack Power Supply, User Manual, Carrying Case and One year standard warranty with extended warranties available

NOTE: ergoGLOVE FSR System can be added to ergoPAK Portable Analysis Kit  to expand testing capabilities.

ergoGLOVE 人體工學 FSR 感應器系統

• 透過更新版的 ergoGLOVE 無線集線器，您可以連接 1 到 8 個 FSR 感應器來測量力量。
• 力量感應電阻（FSR）並非載重感測器或應變計，雖然它們可能具有相似的特性，並且可以提供一個具有成本效益的替代方案。
• FSR 感應器可與套件中提供的手套或乳膠指套一起使用，亦可單獨使用、與其他手套配合使用，或直接黏貼於皮膚或其他外部表面。
• FSR 感應器輕薄、柔韌且不顯眼，對動作或表現的干擾極小。
• ergoGLOVE 無線集線器允許在 25 英尺範圍內自由移動並捕獲數據。
• FDC FET 數據收集軟體即時捕捉數據，並將數據以 .csv 檔案格式保存。

在限制條件下測量力量 – 選擇 ergoGLOVE

配備力量感應電阻的 ergoGLOVE 是一款人體工學 FSR 感應器系統，可用於測量身體、手指/手與外部表面和工具之間的局部力量，或兩個表面之間的力量。

FSR 感應器輕薄、柔韌、不顯眼，並且對動作或表現的干擾極小。ergoGLOVE 非常適用於各種任務、工具分析、產品測試，以及需要將工人的能力與實際工作需求進行比較的場合。

力量感應電阻並非載重感測器或應變計設備，儘管它們具有相似的特性，但仍可提供成本效益較高的替代方案。

ergoGLOVE 的無線功能允許在 25 英尺範圍內自由移動並捕獲數據。使用 ergoGLOVE 時，您可以連接 1 到 8 個 FSR 感應器並使用無線集線器。

此系統可作為獨立的測試系統，或與其他 ergoPAK™ 感應器同時使用。

隨附的 FDC FET 數據收集軟體可捕捉感應器的原始數據，並顯示數據的即時圖表。測試數據會以 .csv 檔案格式保存，您可以打開並進一步分析。該軟體與 Windows 操作系統 XP 及更新版本兼容。

ergoGLOVE 規格

FSR 感應器：

• 感應器有效區域：0.375 英寸直徑 / 9.53 毫米直徑
• 感應器長度：2 英寸，包括尾部
• 感應器寬度：0.55 英寸 / 14 毫米
• 感應器厚度：0.008 英寸 / 0.203 毫米
• 力量範圍：最大力量限制 100 磅

註：如果與 ergoPAK 便攜式分析套件一起購買 ergoGLOVE FSR 系統，則 FDC FET 數據收集軟體光碟不包括在內，因為它已經是 ergoPAK 系統的一部分。

FSR 腕部集線器：

新！具 8 個連接端口的無線集線器

由可充電的圓形鋰電池提供電力

無線數據捕捉範圍：25 英尺

ergoGLOVE 包含內容：

無線連接集線器（帶束帶）、USB 加密狗、（8）根連接線、（16）個一次性 FSR 感應器、（2）副手套（1 左手 / 1 右手，選擇尺寸：S、M、L、XL）、（9）條魔術貼線材管理條、雙面膠帶、（32）個塑膠圓片、各式乳膠指套、FDC FET 數據收集軟體、牆面電源供應器、使用手冊、攜帶箱及一年標準保固，延長保固可選購。

注意：

ergoGLOVE FSR 系統可加入 ergoPAK 便攜式分析套件，以擴展測試功能。
